Helical piers, also known as anchors, piles or screwpiles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.
Square Shaft Advantages:
Greater yield and Tensile strength
Patented Cross-bolt Connection
Increased safety factor
Higher torque capacity
Easy to install
Installs in any season
Minimal soil disturbance
Not affected by a high water table
Composition:
A square solid shaft 1 ¼” thru 2″ O.D. typical.
Circular tapered plates (helices) are welded to the center of the shaft.
Helix diameters can range between 6″ – 48″ with a thickness of 3/8″ – 1″.
Helix pitch will range from 3″ – 6″
Galvanized or bare steel options available
Round Shaft Advantages
Superior lateral stability
Greater section modulus strength to resist twisting and deflection
Patented cross-bolt connection
Greater load capacities
Easy to install
Installs in any season
Minimal soil disturbance
Not affected by a high water table
Composition:

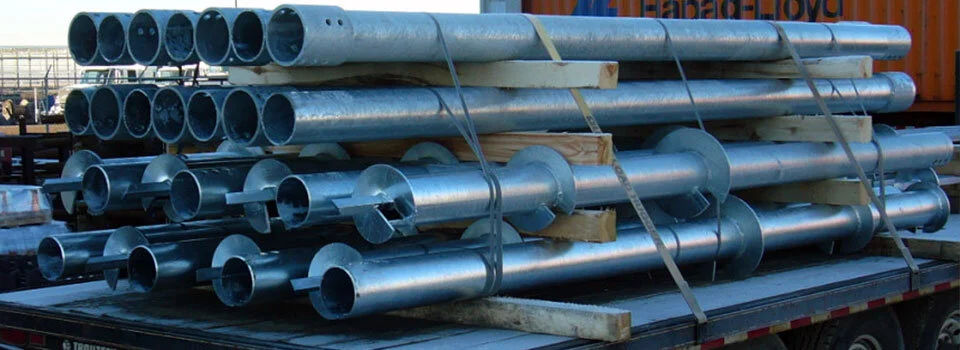

A round hollow shaft 2 7/8″ thru 12 ¾” O.D. typical.
Circular tapered plates (helices) are welded to the center of the shaft.
Helix diameters can range between 6″ – 48″ with a thickness of 3/8″ – 1″.
Helix pitch will range from 3″ – 6″.
Galvanized or bare steel options available
Cross Lock Advantages
Instant alignment
Complete steel on steel connection
Torque is fully contained in the coupling
Zero bolt hole elongation during installation
ICC-ER (ESR-3969) Certified
Superior strength and lateral stability
Reduce installation times up to 50%
Offered Exclusively by PierTech Systems
